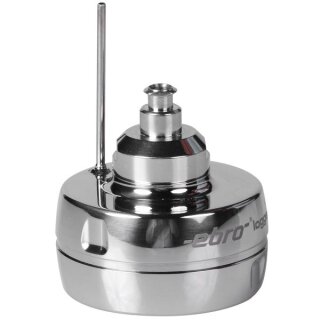

ebro EBI 12-TP231-EX, Ex-Protected Pressure &Temperature Logger
Pressure and temperature data logger for process validation in steam sterilizers, RDG, RDG-E, also for the Ex area.
Validation logger for thermal testing of processes with steam sterilizers and RDGs. The logger is characterized by its high accuracy and ease of use. Of course, this data logger can also be used for routine checks in the AEMP.
Advantages:
- high-quality, robust stainless steel housing, IP68
- ATEX approval: Type II1G Ex ia IIC T4 Ga
- external, flexible metal temperature sensor
- real-time data transmission
- short response time
- measuring ranges: 0°C to +150°C / 1 to 4,000 mbar
- high accuracy
- sterilisable data logger
Application:
- validation logger for measuring in steam sterilizers, RDG, RDG-E
Technical data:
Operating temperature: 0°C to +150°C
ATEX approval: Type II1G Ex ia IIC T4 Ga
Permissible ambient conditions in the Ex area:
0°C to +85°C
100 Pa to 400 kPa
Temperature measuring range: 0°C to +150°C
Pressure measuring range: 1 to 4,000 mbar
Temperature accuracy: ± 0.1°C (0°C to +120°C)
± 0.05°C (+120°C to +140°C)
± 0.1°C (+140°C to +150°C)
Pressure accuracy: ±15 mbar (1 mbar to 49 mbar)
±10 mbar (50 mbar to 150 mbar)
±15 mbar (151 mbar to 2,049 mbar)
±10 mbar (2,050 mbar to 2,250 mbar)
±15 mbar (2,241 mbar to 2,999 mbar)
´ ±10 mbar (3,000 mbar to 3,250 mbar)
±15 mbar (3,251 mbar to 3,499 mbar)
±20 mbar (3,500 mbar to 4,000 mbar)
Temperature resolution: 0.01°C
Pressure resolution: 1mbar
Storage capacity: 2 x 33,440 readings
Temperature sensor: PT1000, Class A
Pressure sensor: Piezoresistive pressure sensor
Measurement interval: 250ms to 24h
Real-time data transmission: Yes
Storage temperature: -20°C to +70°C
Storage mode • Continuous measurement immediately
• Measurement after start time
• Measure immediately until memory is full
• Start / stop measurement
Battery: Lithium battery, 3.6V, replaceable by user
Dimensions: (Ø x H) 48 mm x 24mm
Weight: Approx. 90g
Housing material: 316 L stainless steel / PEEK
Protection class: IP68
Factory calibration certificate: -20°C, 0°C, +60°C and +134°C
100mbar and 3,100mbar (at +25°C)
3,100mbar (at +134°C)
Standards and guidelines:
•2014/34/EU ATEX Directive
•EN 285 Sterilization - Steam sterilizers - Large sterilizers
•EN 13060 Small steam sterilizers
•ISO 17665 Sterilization of healthcare products - Moist heat
•ISO 15883 Cleaning and disinfection equipment
