CONNEX CPC32-C2-C1T3F3-RB, Xtreme Outdoor Power Container, 32A

CONNEX CPC32-C2-C1T3F3-RB, Xtreme Outdoor Power Container, 32A

CONNEX CPC32-C2-C1T3F3-RB, Xtreme Outdoor Power Container, 32A

CONNEX CPC32-C2-C1T3F3-RB, Xtreme Outdoor Power Container, 32A

CONNEX CPC32-C2-C1T3F3-RB, Xtreme Outdoor Power Container, 32A

SKU: 1038190

Category: Event Electronics

1x CEE32A IN - 1x CEE 16A 5P OUT, 3x PowerCON TRUE1 TOP & 3x Schuko F Type OUT
High durability and protection
Easy transport and handling: Compact, stackable
IP44 protection rating (all connectors when plugged in)
High-quality components and assembly

1.359,77 €

incl. 19% VAT , plus

Available
: 11 - 13 Workdays (DE - int. shipments may differ)

pcs

Available
: 11 - 13 Workdays (DE - int. shipments may differ)

CONNEX CPC32-C2-C1T3F3-RB, Xtreme Outdoor Power Container, 32A

On request modification.

Power Container is a highly reliable, rugged and first level powerful distribution solution.

Features and Benefits

High durability & protection: rugged Easylen® housing with high IK, IP44 with all connectors in mated condition, self-closing caps, connector protection, flame retardant & non-conductive housing material
Easy transport & handling: compact, stackable, fully lockable, integrated handles
High quality of component and assembly add to high reliability and safety of the power distribution and the event.

Markets & Applications:

Markets: LED walls, lighting, other
Mobile applications: Festivals, live events
Semi-permanent applications: Theaters, studios, fairs

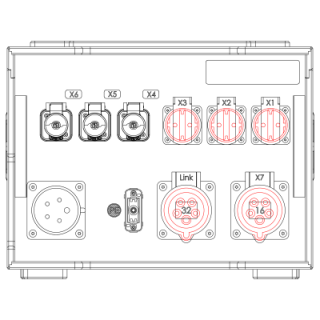

Technical data:

Input device: 1x CEE32A 5P red

1x CEE 32A 5P (-)

Output device: 1x CEE 16A 5P (1x MCB16A C 3P)

3x PowerCON TRUE1 TOP & 3x Schuko F Type (6x MCB16A C 1P)

1x RCCB 40A 30mA 4P

1x cPot
Phase control indicator: L1, L2, L3, green
Rated voltage: 415VAC / 50Hz
Rated current: In: 32A
Type of construction: Stackable
Dimensions: ca. 395 x 295 x 270mm³
Housing material. Easylen®

Housing colour: Black

Housing protection: IP44 with CEE and cPot in mated condition

Operating temperature range: -5 to +40°C

Manufacturer Information

Neutrik EMEA GmbH

Felix- Wankel- Str. 1

85221 Dachau

Bayern

Deutschland

https://www.neutrikgroup.com
