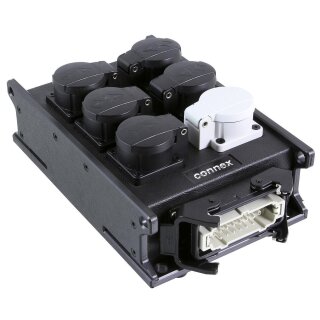

CONNEX Multicore Power Distribution Box, 1 x Harting E 16-pin (1-9) to 6 x Schuko Sockets with Hinged Cover

Name: CONNEX Multicore Power Distribution Box, 1 x Harting E 16-pin (1-9) to 6 x Schuko Sockets with Hinged Cover
Brand: CONTRIK
SKU: 1029204
Price: 113.05 EUR
Availability: InStock

SKU: 1029204

Category: Event Electronics

CONTRIK CPS multicore distribution box MUR 1xHARTING E 16-pin [1-9] to 6xSchuko sockets Made of break-resistant Easylen®, flame-retardant and self-extinguishing Protection class IP54, internal wiring 2.5mm² Dimensions: 315 x 167 x 112 [119] mm (without fittings and [feet])

205,87 €

113,05 €

incl. 19% VAT , plus

Available
: 1 - 3 Workdays (DE - int. shipments may differ)

Available
: 1 - 3 Workdays (DE - int. shipments may differ)

CONNEX Multicore Power Distribution Box, 1 x Harting E 16-pin (1-9) to 6 x Schuko sockets with Hinged Cover

Lightweight, highly stable Ruggbox® enclosure with clip rails. Material: Easylen® – flame-retardant and self-extinguishing (glow wire test according to DIN 60695-2-10).

Lightweight, highly stable Ruggbox® enclosure with clip rails.

Material: Easylen® – flame-retardant and self-extinguishing (glow wire test according to DIN 60695-2-10).

Suitable for outdoor use, IP54 protection rating (use cap 32810250 if the output multicore cable is not connected!)
Durable, internal 2.5 mm² wiring using crimp and ultrasonic welding technology
Recessed labeling area for custom stickers 50 x 30 mm (standard Easyjob label)
High-quality HARTING and MENNEKES connectors
Numerous 10 mm holes for securing and mounting
M10 threads on the underside
Stainless steel screws
Clear pin assignment markings
Schuko sockets in black (channel 1 white) with sealing ring according to the new VDE 0620-1: 2010-02
Dimensions: 315 x 167 x 112 [119] mm (excluding fittings and feet)

CPS MUR-6_Pin19

Previous CONNEX part number: 12231024
