FIBERFOX Adaptor Box, Multimode
Robust fiber optic connection for harsh environments.
The FIBERFOX adaptor box from Neutrik (CONNEX) is the ideal solution for reliable fiber optic connections in demanding applications such as events, outdoor installations, broadcasting, or military operations. The robust box enables the connection of standard LC connectors with the particularly robust FIBERFOX system – secure, weatherproof, and extremely durable.
Housing made of impact-resistant Easylen®. Dimensions: 220mm x 77mm x 61mm without fittings.
Includes safety eyelets and clip rails for truss clamps or accessories. The base features an insulated M10 internal thread.
The scope of delivery includes two truss clips for 48mm (1½") truss tubes.
With the Neutrik FIBERFOX adaptor box, you opt for a professional, durable, and versatile fiber optic solution that performs impressively even under the toughest conditions. Choose from five well-designed versions depending on your application requirements.
Characteristics:
- Compact, mobile connection box for fiber optic connections
- Compatible with all Neutrik FIBERFOX system components
- IP65 when mated
- Impact-resistant Easylen® housing, ideal for outdoor use
- Plug-and-play – no special tools required
- Optimized for both temporary and permanent installations
Available versions (please select when ordering):
NAO2MW-FX: 1x EBC1502 MM to 1x NO2-4FDW-A MM
2 FIBERFOX channels on LC connector
Protection class: IP42 When plugged in: IP65
Connection:
EBC1502 (A1) to NO2 (front panel A)
EBC1502 (B1) to NO2 (front panel B)
NAO4MW-FX: 1x EBC1504 MM to 1x NO4FDW-A MM
2 FIBERFOX channels on LC duplex connectors
Protection class: IP42, when plugged in: IP65
Connection:
EBC1504 (A1) to NO4 (front panel A)
EBC1504 (B1) to NO4 (front panel B)
EBC1504 (A2) to NO4 (front panel a)
EBC1504 (B2) to NO4 (front panel b)
NO4MBB2M2-FX: 1x EBC1504 MM to 2x EBC1502 MM
4 FIBERFOX channels to 2x 2 FIBERFOX channels
Protection class: IP65
Connection:
EBC1504 (A1) to EBC1502-1 (B1)
EBC1504 (B1) to EBC1502-1 (A1)
EBC1504 (A2) to EBC1502-2 (B1)
EBC1504 (B2) to EBC1502-2 (A1)

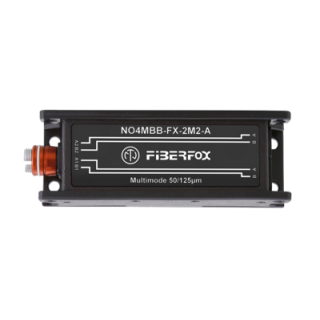

NO4MBB-FX-2M2-A: 1x EBC1504 MM to 2x NO2-4FDW-A MM
4 FIBERFOX channels to 2x LC duplex sockets
Protection class: IP42, when plugged in: IP65
Connection:
EBC1504 (A1) to NO2-1 (front panel A)
EBC1504 (B1) to NO2-1 (front panel B)
EBC1504 (A2) to NO2-2 (front panel A)
EBC1504 (B2) to NO2-2 (front panel B)
NAO4MW-A-2M2-A: 1x NO4FDW-A to 2x NO2-4FDW-A MM
4 LC channels on 2x LC duplex sockets
Protection class: IP42, when plugged in: IP65
Connection:
NO4 (front panel B) to NO2-1 (front panel A)
NO4 (front panel A) to NO2-1 (front panel B)
NO4 (front panel b) to NO2-2 (front panel A)
NO4 (front panel a) to NO2-2 (front panel B)
Application areas:
- Live Events & Touring
- Broadcast & Film Production
- Defense & Industry
- Mobile Network installations
- Outdoor fixed cabling
