FIBERFOX EBC15 4-Channel Singlemode Fiber Optic Cable

NEUTRIK

FIBERFOX EBC15 4-Channel Singlemode Fiber Optic Cable

SKU: 1036547ff

Category: Neutrik FIBERFOX Fiber Optic Cable

Extremely robust, heavy-duty, IP68 connector (mated and unmated)
Jam nut design (housing)
Higher temperature resistance (compared to EBC15): -46°C to +71°C
Cables are directly extendable, no couplings required
Dimensions fully comply with MIL-DTL-83526 specifications

from

1.963,88 €

incl. 19% VAT , plus

Available

pcs

This item has variations. Please select the requested variation.

Available

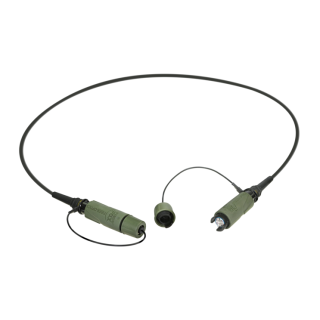

FIBERFOX EBC25, 4-Channel Singlemode Fiber Optic Cable

The FIBERFOX EBC25 4CH fiber optic cable features hermaphroditic, self-compatible connectors with Expanded Beam Converter (EBC) technology. Its jam-nut design makes it suitable for a wide range of applications in industry, defense, government, and railways. This innovative design enables use in the most demanding environments where consistent performance and absolute reliability are critical. The FIBERFOX EBC25 series has an enhanced temperature resistance of -46°C to +71°C. The connector dimensions fully comply with the specifications of the MIL-DTL-83526 standard and are compatible with all other connectors of this standard. Neutrik offers this exceptional connector solution in singlemode and multimode.

Thanks to Expanded Beam technology and precise optical alignment, the system offers high immunity to dust, mud, liquids, and other contaminants. The hermaphroditic FIBERFOX coupling eliminates the need for adapters and female and male connector halves. The cable connectors are delivered pre-assembled and are not available as individual components. The finished cable is available in standardized lengths and packaged either on a drum or as an air-core spool.

Versions are available in cable lengths, as an air-core spool, or with a cable drum (please select when ordering!).

Characteristics:

Available in multimode and singlemode
Extremely robust, heavy-duty, IP68 connector (mated and unmated)
Jam nut design (housing)
Higher temperature resistance (compared to EBC15): -46°C to +71°C
Cables are directly extendable, no couplings required
Wear-free connectors, >10,000 mating cycles without any maintenance
No special cleaning or measuring tools required
Dimensions fully comply with MIL-DTL-83526 specifications

Technical data:

Product
Name: FIBERFOX EBC25 4CH
Connector Type: Hermaphroditic, self-compatible
Mechanical Data
Tensile Strength: 1,800N
Compressive Strength: 50,000N
Service Life: >10,000 mating cycles
Free Fall Strength: 4,000 Drops onto concrete from a height of 1.2m
Impact resistance: 4,000 impacts at 40g acceleration
Vibration sine wave: 10–500Hz, 0.75 amplitude at 10g acceleration
Material
Protective cover: Rubber (EPDM)
Insert: Steel
Housing: Aluminum
Housing coating: Hard anodized
Strain relief: Brass
Environmental
Flammability: UL 94 V-0
Protection class: IP68 mated (15m for 24h according to MIL-DTL-83526D Section 3.11.28)

unmated (1m for 24h)
Compatibility: MIL-DTL-83526
Temperature range: -46°C to +71°C
Optical
Single-mode insertion loss: Typ. 1.0 B, max. 2.0dB per connection (according to IEC 61300-3-4)
Max. 2.5dB per connection (according to IEC 61300-3-34)
Singlemode return loss: Typical >32dB (according to IEC 61300-3-6)
Optical connector: EBC25
Optical wiring: ISO/IEC 11801
Mobile cable
Colour: Black, shiny
Core diameter: Singlemode 9μm
Clad diameter: 125μm
Sheath: PUR
Minimum bending radius: 5.0cm
Number of fibers: 2
Cable material: Aramid yarn
Weight: 23kg/km
Overall diameter: Ø5.0mm
