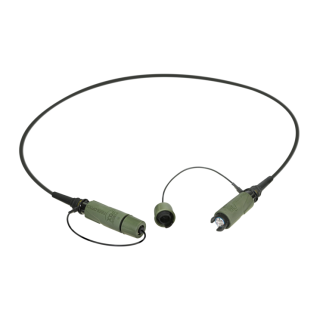

FIBERFOX X-TREME EBC25, 4-Channel Multimode Fiber Optic Cable
The FIBERFOX X-TREME EBC25 4CH fiber optic cable is cut-resistant thanks to its double jacket with glass yarn and also offers rodent protection. The use of aramid yarn provides excellent strain relief. The cable is encased in a black PUR outer jacket, making it suitable for outdoor applications. FIBERFOX X-TREME is suitable for a wide range of applications, including lighting, networking, public address, video, broadcasting, defense and government, railway, and petrochemical. Its innovative design enables use in challenging environments where consistent performance and absolute reliability are critical.
The FIBERFOX EBC25 series has an enhanced temperature resistance of -46°C to +71°C. The connector dimensions fully comply with the specifications of the MIL-DTL-83526 standard and are compatible with other connectors that use this standard.
FIBERFOX X-TREME is available in both multimode and singlemode.
Thanks to expanded beam technology and precise optical alignment, the system offers high immunity to dust, mud, liquids, and other contaminants. The hermaphroditic, self-compatible FIBERFOX coupling eliminates the need for adapters and male and female connectors. The cable connector is delivered pre-assembled and is not available as a separate part. The finished cable is available in standard lengths and is packaged either on a drum or on an air-core spool.
Versions are available in cable lengths, as an air-core spool, or with a cable drum (please select when ordering!).
Characteristics:
- Available in multimode
- X-TREME cable protection for demanding outdoor applications
- Rodent protection & cut-resistant
- Extremely robust, heavy-duty connectors IP68 (mated & unmated)
- Cables are directly extendable, no couplings required
- Wear-free connectors, >10,000 mating cycles without any maintenance
- Locknut construction (chassis)
- Higher temperature resistance (compared to EBC15): -46°C to +71°C
- Cable connectors are designed according to MIL-DTL-83526 and are compatible with other connectors that meet this standard
- No special cleaning or measuring tools required
Technical data:
Product
Name: FIBERFOX X-TREME EBC25 4CH Multimode
Connector Type: Hermaphroditic, self-compatible
Mechanical Data
Tensile Strength: 1,800N
Compressive Load: 50,000N
Service life: >10,000 mating cycles
Free fall resistance: 4,000 drops onto concrete from a height of 1.2m
Impact resistance: 4,000 impacts at 40g acceleration
Vibration sine wave: 10-500Hz, 0.75 amplitude at 10g acceleration
Material
Protective cover: Rubber (EPDM)
Insert: Steel
Housing: Aluminum
Housing coating: Hard anodized
Strain relief: Brass
Environment
Flammability: UL 94 V-0
Protection class: IP68 mated (15 m for 24 h according to MIL-DTL-83526D Section 3.11.28)
unmated (1 m for 24 h)
Compatibility: MIL-DTL-83526
Temperature range: -46 °C to +71°C
Optical
Multimode insertion loss: Typ. 1.5dB per connection / Max. 2.5dB per connection
Optical connector: EBC25
Optical wiring: ISO/IEC 11801
Mobile cable
Color: Black, matte
Core diameter: Multimode 50μm
Clad diameter: 125μm
Sheath: PUR
Minimum bending radius: 92mm
Number of fibers: 4
Cable material: Aramid yarn
Weight: 82kg/km
Overall diameter: Ø9.2mm
Outer shield: Coated glass yarn
