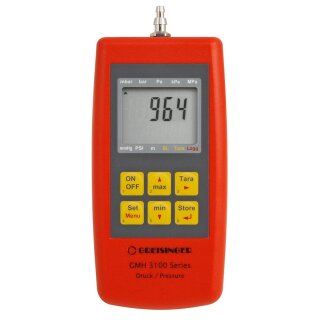

GMH 3161-12, Digital- Vacuum Meter and Barometer
|
Absolute pressure sensor for vacuum and barometric pressure
Suitable for air or non-corrosive or non-ionising gases
|
The barometric air pressure can also be related to sea level "zero". Correction of air pressure is achieved by entering the altitude above "zero" in metres.
Technical data:
| Measuring range: |
0 ... 1300 mbar |
| Overload: |
max. 4 bar abs. |
| Accuracy (typ. values): |
± 0,2% Full Scale (hysteresis and linearity)
± 0,4% Full Scale (temperature influence 0-50°C) |
| Pressure units: |
mbar, bar, kPa, MPa, mmHg |
| Special features: |
Auto-Off, BAT, Min-/Max-Wert, Hold, Tara, Scale, Offset
mains adaptor socket, serial interface
2 pressure connection ports Ø4mm, piezoresistive sensor |
| Included in delivery: |
1 pressure device with internal sensor, 1 manual, 1 battery |
Please note: Sensor not suitable for water!
Option:
Device with Ex protection (Ex II 2 G Ex ib IIC T4 Gb)
