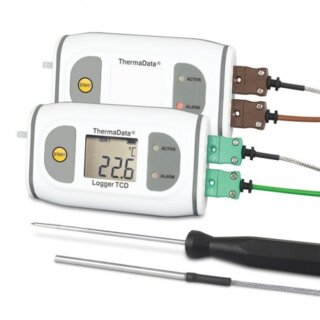

High Temperature ThermaData Datalogger for 2 Thermocouples
- waterproof housing IP66/67 protection
- wide temperature range -99.9 to +1372°C
- twin channel type K or type T thermocouple inputs
- visual display of high/low alarm status
These two input ThermaData® thermocouple data loggers are housed in a waterproof, ergonomic case that is designed to meet IP66/67 protection.
Two models with LCD display are available for type K or for type T thermocouples.
Please select the requested model when ordering!
Please note that the models are only suitable for type K or type T. Two different thermocouple types on one device are not possible.
The Thermocouple ThermaData®data loggers measure temperature over the range of -99.9 to +1372°C (type T: -99.9 to +400°C) with a 0.1°C resolution, auto-ranging to 1°C over the range of +300 to +1372°C. At programmable intervals the loggers will record the temperature, up to a maximum of 16,000 readings or 2 x 8,000 readings.
Each logger incorporates a red and green LED, the flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised pre-set alarms have been exceeded. Each logger is supplied with a USB lead and ThermaData® Studio Software.
For details of our wide range of thermocouple probes available
Click Here!
Please note: The available measuring range depends on the measuring range of the temperature sensor used.
ThermaData Studio software
The ThermaData logger is connected to a PC via a serial or USB port lead. By selecting the relevant icon the data can be downloaded and displayed either as a graph, table or summary. The information can then be analysed by zooming in, storing to disc.
USB Connection Point
Simply remove the end cap to access the USB port. This allows the user to connect the logger to a PC via the USB lead (supplied) and upload the temperature readings collected.
Technical data:
|
measuring range:
|
type K: -99.9 to +1372°C
type T: -99,9 to +400°C
|
|
resolution:
|
0.1 °C to +300°C thereafter 1°C
|
|
accuracy:
|
±0.4°C ±0.1% of reading
|
|
memory:
|
16,000 or 2 x 8,000 readings
|
|
sample rate:
|
0.1 to 255 minutes
|
|
battery
|
AA Tadiran - Li-SOCl
|
|
battery life:
|
3 years @ 20°C
|
|
display:
|
10 mm LCD / 2 LEDs
|
|
dimensions:
|
35 x 67 x 109mm³
|
|
weight:
|
200 grams
|
|
FREE traceable certificate of calibration included.
|
