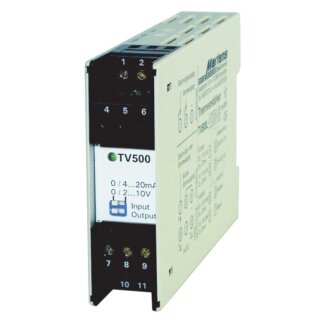

Isolating Signal Converter TV500
The TV500 isolating signal converter can be used to isolate and convert field signals 0/4..20 mA or 0/2..10 V DC into industry standard signals for process control systems.
Technical data:Auxiliary voltage: 100-265VAC or 10.8...30VAC/DC (please select when ordering)
Frequency AC: 47...63Hz
Power consumption: <3,5VA
Operating temperature: -10...+60°C
CE conformity: EN 55022, EN 60555-2,
IEC 61000-4-4/5/11/13
InputsCurrent: 0/4...20mA selectable, Ri = 25 Ohm, overload max. 100mA
Voltage: 0/2...10VDC selectable, Ri ca. 40 kOhm,
overload max. 100V
OutputsCurrent: 0/4...20mA selectable, burden max. 1 kOhm
Voltage: 0/2...10V selectable, burden max. 15mA, short-circuit-proof
(parallel with the current output max. 5mA)
Rise time (T
90): <20ms, max. frequency: 18Hz
Basic accuracy: < = 0.2%
Case
Design: standard case polycarbonate 8020 UL94V-1
according to DIN EN 60715:2001-09
Weight: ca. 200g
Connection: screw terminals, max. 2,5mm²
Protection class: case IP30, terminals IP20 according to BGV A3
