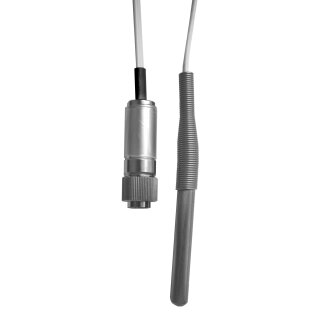

PB-7006 is a special stainless steel probe with flat cable for monitoring temperatures from -80 to +250°C.
It should be noted that the cable is no longer flexible below -70°C (-94°F).
The probe is ideal for a variety of applications from cold stores to incubators. Thanks to the flexible cable, this sensor is ideal for refrigerators or freezers, because it can be routed through the seals.
This waterproof (IP67) probe uses a highly specified resin and unique manufacturing technology that exposes both the sheath and the cables to their full temperature range.
This probe is available with 1.5m or 3m cable length (please select when ordering!).
Technical data:
Measuring range: -80 to +250°C (-112 to +482°F)
Response time: typ. better than 5 minutes to 90% FSD in moving air
Sensor type: PT1000 (class A)
Protection rating: IP67, waterproof
Temperature data:
Sheath and cable: -80 to +250°C (-112 to +482°F) do not flex cable below -70°C (-94°F)!
Ferrite bead: -25°C t +125°C (-13 to +257°F)
Connector: -25°C to +85°C (-13 to +185°F)
Materials:
Sheath: stainless steel (316)
Cable: Hyflon MFA
Flat cable cross sectiont: ca. 1.8mm x 3.6mm
Ferrite bead: 3 W 800
Connector: nickel plated brass/zinc alloy
Weight: 53g (with 1.5m cable)
