PP963 PicoScope 3400D Series, 4-Channel 8 Bits, 50-200MHz USB Oscilloscopes PicoScope 3404D, 70MHz, 1GS/s, Buffer: 128MS, FG+AWG

Name: PP963 PicoScope 3400D Series, 4-Channel 8 Bits, 50-200MHz USB Oscilloscopes PicoScope 3404D, 70MHz, 1GS/s, Buffer: 128MS, FG+AWG
SKU: PP963
Price: 1445.85 EUR
Availability: InStock

SKU: PP963

Category: Measuring Instruments

4 Channels

8 bits resolution

50-200 MHz bandwidth

USB oscilloscoope

1.445,85 €

incl. 19% VAT , plus

Available
: 11 - 13 Workdays (DE - int. shipments may differ)

Models:: PicoScope 3403D, 50MHz, 1GS/s, Buffer: 64MS, FG+AWG

PicoScope 3404D, 70MHz, 1GS/s, Buffer: 128MS, FG+AWG

PicoScope 3405D, 100MHz, 1GS/s, Buffer: 256MS, FG+AWG

PicoScope 3406D, 200MHz, 1GS/s, Buffer: 512MS, FG+AWG

Available
: 11 - 13 Workdays (DE - int. shipments may differ)

PicoScope 3400D Series, 4-Channel 8 Bits, 50-200MHz USB Oscilloscopes

The 4-channel oscilloscopes PicoScope 3403D, 3404D, 3405D and 3406D are small, light, and portable and can easily slip into a laptop bag while offering a range of high-performance specifications.
Supported by the advanced PicoScope 6 software, these devices offer an ideal, cost-effective package for many applications, including embedded systems design, research, test, education, service, and repair.

Technical data in short:

4-channel digital storage oscilloscope
50 to 200 MHz bandwidth
USB 3.0 port (USB 2.0 compatible)
Real-time sampling rate: 1GS/s
ETS- Sampling: 10 GS/s
Buffer memory: 128 to 512 MS
Spectrum analyzer: 50 to 200 MHz
Each model with integrated function generator (FG) and with arbitrary waveform generator (AWG)
PicoScope software with full range of functions included in the price

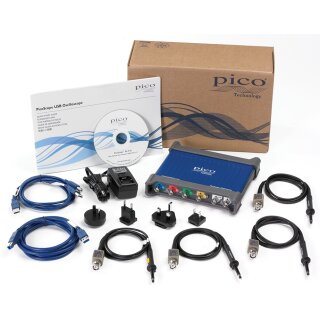

The kits contain the following items:
+ PicoScope 3400D oscilloscope
+ 4 x probes in bag
+ Quick start guide
+ Software and Reference CD + USB cable for 2.0 and 3.0

These Pico instruments are also available with calibration certificate at extra charge!

Detailed technical data you will find in the datasheet:

Download Brochure PicoScope 3000D (PDF file)

Overview of the PicoScope 3400D models:

ORDER NO.	MODEL	BANDWIDTH	SAMPLING	MEMORY	WAVEFORM	INCL. PROBE
PP962	PicoScope 3403D	50 MHz	1GS/s	64 MS	Function.gen. + AWG	4 x 60 MHz
PP963	PicoScope 3404D	70 MHz	1GS/s	128 MS	Funct.gen. + AWG	4 x 150 MHz
PP964	PicoScope 3405D	100 MHz	1GS/s	256 MS	Funct.gen. + AWG	4 x 150 MHz
PP965	PicoScope 3406D	200 MHz	1GS/s	512 MS	Funct.gen. + AWG	4 x 250 MHz
