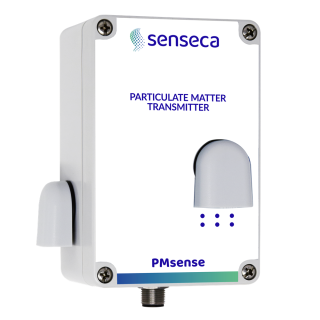

Particulate Matter / CO2 Transmitter for Indoor Air
Whether in the pharmaceutical or high-tech sectors, cleanrooms are environments where attention to contamination must be paramount.
They must be closely monitored at all times to ensure that the required standards are met.
PMsenseCR is a particle counter transmitter suitable exactly for these applications.
PMsenseCR is a Particulate Matter (PM) and optionally CO2transmitter, ideal for pharmaceutical and high-tech cleanrooms where contamination control is critical.
Particularly suitable for controlled environments
The measuring principle is based on the laser scattering method: it counts and classifies particles according to their size in order to monitor a cleanroom
environment as described in the ISO 14644 standards.
Excellent long term performance
The transmitter is maintenance-free and has fast response, high sensitivity, excellent stability and long operating life.
Reliable & Maintenance-Free
Built for long-term stability, PMsenseCR offers fast response, high sensitivity, and extended operating life - no routine maintenance required.
Optional CO₂ Sensing
Add an integrated CO₂ sensor for comprehensive indoor monitoring.
Measuring cycle interval user configurable
The measuring circuit of the transmitter can be operated in continuous mode (default operating mode) or, in order to extend the PM sensor lifetime, at cyclic
intervals.
Output flexibility
Digital RS485 output with MODBUS-RTU or ASCII proprietary protocol or version with two additional 4…20 mA outputs. The two analog outputs can be
independently associated with any of the measured parameters.
Very flexible with regards to the choice of outputs and fully equipped with 5 channels:
- Ch.1: >0.3μm
- Ch.2: >0.5μm
- Ch.3: >1.0μm
- Ch.4: >2.5μm
- Ch.5: >5.0μm
The PMsenseCR is available in four variants (please select when ordering):
PMsenseCR-M PM transmitter with RS485 MODBUS-RTU output
PMsenseCR-A PM transmitter with RS485 MODBUS-RTU output + two 4...20mA outputs
PMBsenseCR-M PM & CO2 transmitter with RS485 MODBUS-RTU output
PMBsenseCR-A PM & CO2 transmitter with RS485 MODBUS-RTU output + two 4...20mA outputs
Technical data:
Measurements:
Particulate Matter
Measuring principle: Laser scattering
Measured pollutants:
N° of particles/m3 with size >0.3μm
N° of particles/m3 with size >0.5μm
N° of particles/m3 with size >1μm
N° of particles/m3 with size >2.5μm
N° of particles/m3 with size >5μm
Measuring range: <5 x 109 pcs/m3 (loss of linearity above this threshold)
Particle size detection range: Ø0.3…10μm
Lowest detectable concentration: 350 particles/m3
Detection efficiency (according ISO 21 501-4):
50% ± 30% @ 0.3μm
100% ± 20% @ 0.5μm
False count: <3 over 15 minutes
Repeatability: <3% for N° of particles/m3 with size >0.3μm and >0.5μm
<5% for N° of particles/m3 with size >1μm
<10% for N° of particles/m3 with size >2.5μm
<15% for N° of particles/m3 with size >5μm
Sensor warm up time 15s
Sensor lifetime:
>10,000 hours in continuous operating mode (default, 1 meas./s)
5 years approx. in 5 minutes cyclic operating mode
CO2 (only PMBsenseCR…)
Measuring principle: Double wavelength NDIR
Measuring range: 0…5,000ppm
Accuracy: ±(50ppm +3% of measurement) @ 25°C and 1013hPa
Response time: < 120s (air speed= 2m/s)
Long-term stability: 5% of measurement / 5 years
Temperature drift: 1ppm/°C
General data:
Output: RS485 with Modbus-RTU or ASCII proprietary protocol
Only PM[B]senseCR-A: 2 x analog 0/4…20mA (RLmax = 500Ω); on request 2 x 0…10V (RLmin = 10kΩ)
Power supply: 7…30VDC (15…30VDC for 0…10V analog outputs)
Power consumption:
25mA @ 24VDC during measurement
4mA in stand-by (only for cyclic operating mode)
The indicated consumption does not include the consumption due to the analog outputs
Connection: M12 8-pole circular connector
Operating conditions: -20…+70°C / 0…95%RH / 500…1500hPa
Housing material: Polycarbonate
Protection degree:
Housing equipped with a rain-proof and UV resistant inlet air filter – IP53
Dimensions: 120 x 94 x 71mm³ (excluding M12 connector)
Weight: 330g
