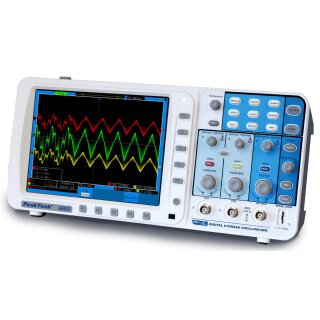

PeakTech 1260, 2-Ch., 200MHz Desktop Digital Storage Oscilloscope, 2GS/s

SKU: P1260

Category: Measuring Instruments

high-resolution TFT colour display with 800 x 600 pixels and 65536 colours
USB port for real-time data transmission or reading of internal memory
autoset and autoscale function for easy operation
internal memory of 10 million points per channel or 15 waveforms
20 automatic measurement modes and FFT function

1.189,88 €

incl. 19% VAT , plus

Available
: 6 - 8 Workdays (DE - int. shipments may differ)

Available
: 6 - 8 Workdays (DE - int. shipments may differ)

PeakTech 1260, 2-Ch, 200MHz Digital Storage Oscilloscope, 2GS/s

Digital storage oscilloscope of the latest generation with high-resolution color display, backlight, high bandwidth and high sampling rate, VGA-output, large internal memory, USB port and LAN connection for integration into networks. The amazing value for money and modern technology allows a wide range of applications in education, service and quality assurance area.

Characteristics:

high-resolution TFT colour display with 800 x 600 pixels and 65536 colours
USB port for real-time data transmission or reading of internal memory
saving of measured values and graphics directly onto a USB stick
VGA output port for external monitor
autoset and autoscale function for easy operation
LAN connection for remote acces via network
internal memory of 10 million points per channel or 15 waveforms
20 automatic measurement modes and FFT function
PASS/FAIL function
safety: EN 61010-1; CAT II
accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP/VISTA/7, power cable, 2 probes, carrying case and manual
optional accessories: accu pack 7.4 V, model: AKKU 3

Technical data:

measurement acqisition
bandwidth:	200MHz
display:	20cm (8") TFT with 65536 colors
resolution:	800 x 600 Pixel
channel:	2 CH

sampling mode:	normal/peak detect/average
sampling rate each channel:	1GSa/s

input
input coupling:	AC, DC, GND
input impedance:	1MOhm +/-2% in parallel with 15pF +/-5pF
input voltage:	400VDC or ACpp

vertical systems
sensitivity:	2mV - 10V/Skt/div.
rise time:	<1.7 ns
accuracy:	+/-3%
vertical resolution:	8 Bits (2 CH simultaneously)

horizontal systems
horizontal scale:	1ns-100s/Skt./div
sampling range:	0.5 - 250S/s

trigger
trigger type:	Edge/Video/Pulse/Slope
trigger mode:	Auto, Normal, Single
trigger coupling:	DC, AC, LF, HF

measurements
20 automat. measurements:	peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A to B (rising), delay A to B (falling), frequency, period, min, max
phase difference:	+/-3°

record
record length	10.000.000 points/CH

common specifications
interfaces:	USB, VGA, LAN
operation voltage:	100 to 240VACrms / 50/60Hz
dimensions (WxHxD):	340 x 155 x 70mm
weight:	1.8kg
