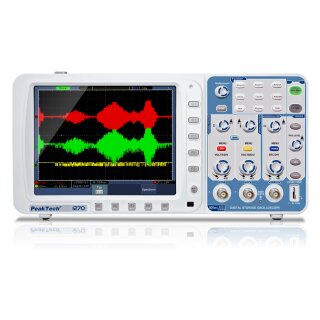

PeakTech 1270, 2-Channel 300MHz Digital Storage Oscilloscope, 2.5GS/s

PeakTech 1270, 2-Channel 300MHz Digital Storage Oscilloscope, 2.5GS/s

SKU: P1270

Category: EOL

2-channel oscilloscope with 300MHz analog bandwidth at max. 2.5GS/s sampling rate
20cm (8”) TFT colour display with 800 x 600 pixels
LAN, USB host, USB device & VGA interface
Recording length of max. 10 million points
Automatic measurement modes, XY mode and FFT function

This item is no longer available!

Replacement: https://priggen.com/Desktop-Oscilloscopes

1.749,18 €

incl. 19% VAT , plus

No longer available

Notify me when this item is available

No longer available

PeakTech 1270, 2-Channel 300MHz Digital Storage Oscilloscope, 2.5GS/s

The PeakTech 1270 is a 300MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 2.5GS/s and impresses with its high quality and ease of use at the best price/performance ratio. To quickly display any incoming waveform, all you need to do is press the Autoset button and the oscilloscope will automatically search for the best possible display. With Autoscale, however, the scaling of the time base can be adjusted in a user-friendly manner. The high memory depth of 10 million points and the simple operation in particular ensure efficient use in daily signal analysis in industry, laboratories and training areas.

Characteristics:

2-channel oscilloscope with 300MHz analog bandwidth at max. 2.5GS/s sampling rate
20cm (8”) TFT colour display with 800 x 600 pixels
LAN, USB host, USB device & VGA interface
Autoset function for user-friendly operation
Recording length of max. 10 million points
Automatic measurement modes, XY mode and FFT function
Optionally available battery: model "Akku 3"
Safety: EN 61010-1; CAT II 400V
Accessories: USB cable, software CD for Windows, power cable, 2 probes, BNC cable, carrying case and operating instructions

Technische Daten:

Bandwidth:	300MHz
Channels:	2 CH
Sampling 1 CH:	2.5GS/s
Sampling 2 CH:	1.25 GS/s
USB:	Yes
Rise time:	<1.17ns
Display type:	Colour TFT
Resolution:	800 x 600 pixels
Screen diameter (TFT):	20cm (8")
Hor. scale max.:	100s/div
Hor. scale min.:	1ns/div
LAN:	Yes
Memory depth:	10.000.000 points
VGA:	Yes
Vert. Auflösung:	8 Bit
Vert. scale max.:	10V/div
Vert. scale min.:	2mV/div
Rechargeable battery:	Li-Po 8000mAh (optional)
Supply voltage:	110/240VAC; 50/60Hz

This item is no longer available!

Replacement: https://priggen.com/Desktop-Oscilloscopes
