PeakTech 205 Analog Pointer Instrument test | P205_3

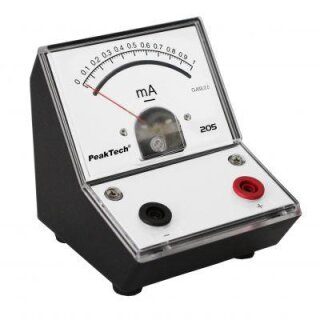

PeakTech 205, Analog Pointer Instrument, Bench Type with Mirror Scale

Rugged meter with desk housing for educational use.
Jewelled movement with 55m scale length and with mirror scale.

With mirror scale and 4mm safety sockets.
Class: 2.0

Standard Measuring ranges (please select when ordering!)
0-50 µA DC	Internal resistance: 2000 Ohm, 100 mV
0-100 µA DC	Internal resistance: 1000 Ohm, 100 mV
0-1 mA DC	Internal resistance: 50 Ohm, 50 mV
0-50 mA/500mA/5 A DC	Internal resistance: 10 Ohm, 50 mV
0-3 V/15 V DC	Internal resistance: 50 Ohm, 50 mV
0-3 V/ 15 V/ 30 V DC	Internal resistance: 50 Ohm, 50 mV
0-3 V/ 15 V/ 300 V DC	Internal resistance: 50 Ohm, ±50 mV
35-0-35 µA DC (galvanometer)	Internal resistance: 1000 Ohm, ± 50 mV
0-1/ 5 A AC	Rectifier
0-5/ 10 A AC	Rectifier
0-15/150 V AC	Rectifier

Dimensions (WxHxD)	90 x 106 x 103 mm
Weight	230 grams

This item is no longer available!

Replacement: https://priggen.com/?suche=analog&lang=eng
