Swiss Shield "Naturell", HF Shielding Fabric, 40dB, Width: 2.50m

Name: Swiss Shield "Naturell", HF Shielding Fabric, 40dB, Width: 2.50m
Brand: PSE Priggen
SKU: SWSH-N
Price: 139.9 EUR
Availability: InStock

SKU: SWSH-N

Category: Industry Electronics

shielding attenuation: 40dB at 1GHz

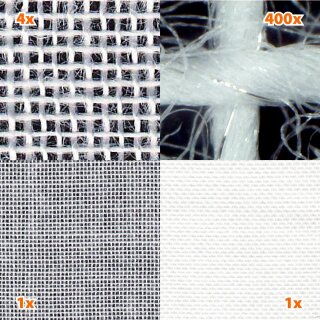

ecological cotton fabric with woven silvered copper filaments

web width: 250cm

washable, easy to iron and process

colour: ecru- white

139,90 €

55,96 € per 1 m²

incl. 19% VAT , plus

Available
: 11 - 13 Workdays (DE - int. shipments may differ)

Split quantity allowed for this item (e.g. 0.5).

Available
: 11 - 13 Workdays (DE - int. shipments may differ)

Swiss Shield "Naturell", HF Shielding Fabric, 40dB, Width: 2.50m

NATURELL is a semi-transparent, unbleached ecological cotton fabric for the protection against high-frequency (HF) radiation. Typical application as curtain.

Ecological cotton fabric without chemicals, certified to Öko-Tex 100 and 1000
High screening attenuation for a cotton fabric
Excellent cost/performance ratio
Textile characteristics: Washable, easy to iron and process
Quality grade: Very high

Technical data:

Width: 250cm ±2cm
Length: Available by the meter
Attenuation: 40 dB
Color: Ecru-White
Raw materials: 82 % cotton, 17 % copper, 1 % silver
Weight: 70 g/m²
Dimension stability: +/- 3 %
Certificates: Öko-Tex 100 and 1000

Grounding:
Cannot be contacted and therefore cannot be grounded. Low-frequency electrical fields (LF) must be reduced by additional procedures. We recommend to shield these fields or to switch them off with a demand switch.

Shielding attenuation:
All shielding attenuation values are valid at 1GHz. Measurement according to ASTM D4935-10 /IEEE Std 299-2006 / IEEEE Std 1128-1998 / ASTM A698/A698M-07.

Care

Cleaning in a washing machine at 30°C is possible. No handwashing!
For allergic persons: Every new fabric smells! Always wash before its first usage!

Please note: The price is valid per m² (square metre), not per running metre!
Starting from the web width, the product can be ordered in measures of 0.1 running metres.

This product is cut off a large roll according to customer specifications. A return is not possible!

RF Shielding Fabric "Swiss Shield Naturell"

for shielding widely against RF high frequency electromagnetic waves
decorative half transparent cotton fabric with spon- in silvered copper filaments
100% textile character: washable, easy to manufacture and to iron
ideal curtain material with typical textile characteristics of cotton

This material is preferably used as curtain material in front of windows, for partial shielding of walls or as bed canopy. It is soft, light, transparent and ist easy to sew, respectively to manufacture. Swiss Shield Naturell shields particularly well high frequency electromagnetic waves (by reflection). The shielding attenuation is independent from the direction of th incoming signals.
In order to avoid slits in the RF shield, oberlapping seams should be made on sewing.

Swiss Shield Naturell needs not and cannot be grounded.

Please note:
RF shielding measures without groundings presume that the electrical AC fields existing in the concerned room are reduced to a minimum by switching off voltage or by shieldings. If this is not done before, the non- grounded RF shielding areas, even those which cannot be grounded can couple to electrical AC fields and can intensify their effects.

Technical data:
Width: 250 cm
Length: sold by the metre, price per m²!
Colour: ecru, white
Characteristics: washable, colour- fast, antistatic
Test standards: MIL_STD 285, NSA 65-6
Shielding attenuation: 40 - 20 dB @ 200 MHz to 3.3 GHz.
Comes along with a leaflet ''Safety Notices''.

Price per m², not per running metre!
