TESTEC TT-SI 8010B, Active Differential Scope Probe, 100MHz, x100 / x1000, 7000V
The TT-SI 8010B differential divider probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground.
The probes are designed for high sensitivity measurements up to 100MHz bandwidth and up to 7000V differential voltage. The probes are compatible with oscilloscopes from all major manufacturers.

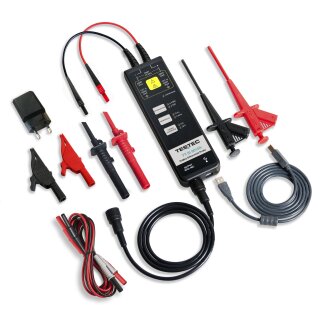

(Photo similar)
Characteristics:
- Attenuation ratio: 1:100 and 1:1000
- Max. input voltage: 7000V
- 100MHz bandwidth
- Meets IEC 61010-1:2015 safety standard
- Selectable attenuation settings
- Offset setting function
- 5 MHz bandwidth limit function to remove noise and interferences.
- Overrange sound & light alarm
- High accuracy (±2%)
- Powered through USB or USB to mains adapter
- Over range indicator LED
Technical data:
| Bandwidth: |
100MHz |
| Attenuation ratio: |
x100 / x1000 |
| DC accuracy: |
±2% |
| Risetime: |
≤3.5ns |
Max. input voltage
differential mode: |
±700V (DC + AC peak) @ x10
±7000V (DC + AC peak) @ x100 |
Max. input voltage
common mode: |
±7000V (DC + AC peak) |
Max. Input Voltage
(each side to ground): |
1000Vrms CAT III
2300Vrms
|
| Power supply: |
USB port or via supplied USB mains power supply |
| Safety Standard: |
IEC1010-031: 2015 |
| Supplied accessories: |
2x test leads with insulated 4mm banana plugs (red & black),
2x grabber (red & black),
2x pincer (red & black),
2x alligator clips (red & black),
1x insulated BNC cable 100cm long,
1x USB power lead,
1x mains adaptor 230V EU version
|
| |
|
Only connect to a grounded measuring device!
Precision Meets Performance – The Testec TT-SI 8010B Differential Probe
Discover a new dimension in signal measurement with the Testec TT-SI 8010B Differential Probe. Engineered to meet the highest standards, this probe offers unparalleled precision and reliability for professional applications.
Why Choose the Testec TT-SI 8010B?
Unmatched Precision: The TT-SI 8010B captures even the smallest signal differences with the highest accuracy, providing you with distortion-free measurements – ideal for complex signal forms and demanding measurement tasks.
Wide Frequency Range: Covering an exceptionally wide frequency range, the TT-SI 8010B handles everything from low to high-frequency signals, offering versatile applications in your measurement technology.
Excellent Noise Immunity: Thanks to advanced technology and superior noise suppression, the TT-SI 8010B minimizes external influences, ensuring clear and unaltered signal acquisition.
User-Friendly Design: The TT-SI 8010B features an ergonomic design and robust construction, ensuring ease of use and durability. Perfect for daily use in the lab or in the field.
Sustainability: With the TT-SI 8010B, you choose an environmentally friendly product. Testec uses sustainable materials and eco-friendly production processes to minimize the ecological footprint.
The Ideal Partner for Your Measurement Technology
Whether in research and development, quality assurance, or production, the Testec TT-SI 8010B Differential Probe is the perfect solution for engineers, technicians, and scientists who demand the highest standards in their measurement technology.
Get Informed and Secure Your Advantages
Learn more about the outstanding features of the Testec TT-SI 8010B and consult with our experts. Take advantage of our current offers and invest in the precision and performance that will propel you forward.
Testec – Precision and Innovation for Your Measurement Technology.
