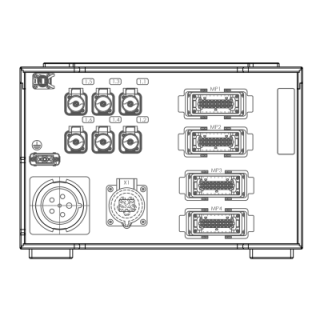

CONNEX CPCL63-C1-H4C1T6-ROM, Xtreme Power Container, 63A

SKU: 1038607

Category: Event Electronics

IN: 1x CEE63A - OUT: 4x Harting E16, 1x CEE32A 5P, 6 x powerCON TRUE1 TOP
High durability, power meter
Easy transport and handling: Compact, stackable
IP44 protection rating (all connectors when plugged in)
High-quality components and assembly

7.357,75 €

incl. 19% VAT , plus

Available
: 11 - 13 Workdays (DE - int. shipments may differ)

Available
: 11 - 13 Workdays (DE - int. shipments may differ)

CONNEX CPCL63-C1-H4C1T6-ROM, Xtreme Power Container, 63A

On request modification.

Power Container is a highly reliable, rugged and first level powerful distribution solution.

Features and Benefits

High durability & protection: rugged Easylen® housing with high IK, IP44 with CEE / cPot in mated condition, self-closing caps, connector protection, flame retardant & non-conductive housing material
Reduction of cabling volume and effort due to 4x Harting E16 Multipin Outs
Easy transport & handling: Compact, stackable, fully lockable, integrated handles
Minimization of failure impact on the event. Due to separate protection of each Out channel against overload
Remote data acquisition via Ethernet and wide range of monitoring and power quality features
Neutral conductor current measurement
Adjustable residual current and trip time delay

Markets & Applications:

Markets: Professional audio esp. amp rack wiring / lighting / video wall
Mobile applications: Festivals, live events. Control panels / rooms
Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms

Technical data:

Input device: 1x CEE63A 5P red

Output device: 4x Harting E16 6ch [1-9] ( 24x RCBO (1-pole+N))
                         1x CEE32A 5P (1x MCB C32 3-pole+N with adjustable residual current monitoring ABB RD3P with fuse protection)
                         6x powerCON TRUE1 TOP (parallel to Harting 1)
                         1x Neutrik EtherCON

1x cPot

Main switch: 4pol

Power meter: Janitza UMG96RM-E
Phase control indicator: L1, L2, L3, green
Rated voltage: 415VAC / 50Hz
Rated current: In: 63A
Type of construction: Stackable
Dimensions: ca. 520 x 360 x 388mm³ (W x H x D)
Housing material. Easylen®

Housing colour: Black

Housing protection: IP44 with CEE and cPot in mated condition

Operating temperature range: -5 to +40°C
